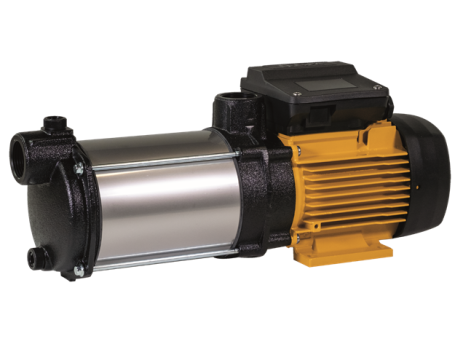

Prisma 15
Prisma 15
Horizontal centrifugal multistage pump for water supply.
Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster sets. Silent. Self-priming up to 2m.
Quiet
Very reliable
Easy to maintain
Note: Please Fill The Contact Form By Clicking Buy Now Button For Order Completion Thanks.
Prisma 15 Features
N/A
- Electrical isolation: F Class
- Motor type: Asynchronous
- Protection rating: IPX5
- Service factor: S1
- Discharge connection type: Thread
- Discharge diameter: 1″
- Motor cooling: Fan
- Seal type: Mechanical seal
- Suction connection type: Thread
- Suction diameter: 1″
- Diffuser/s: Technopolymer
- Discharge body: Cast iron
- Impeller/s: Stainless steel AISI 304
- Mechanical seal: Aluminium-Graphite
- Motor casing: Aluminium
- O-rings: NBR/EPDM
- Pump body: Stainless steel AISI 304
- Pump shaft: Stainless steel AISI 431
- Suction body: Cast iron
- Maximum suction (m): 2
- Water temperature (ºC): Max: 40
